Red-I™ I-45 Joist
Wood Joists
Product Information
Manufacturer Name
RedBuilt
Product Description

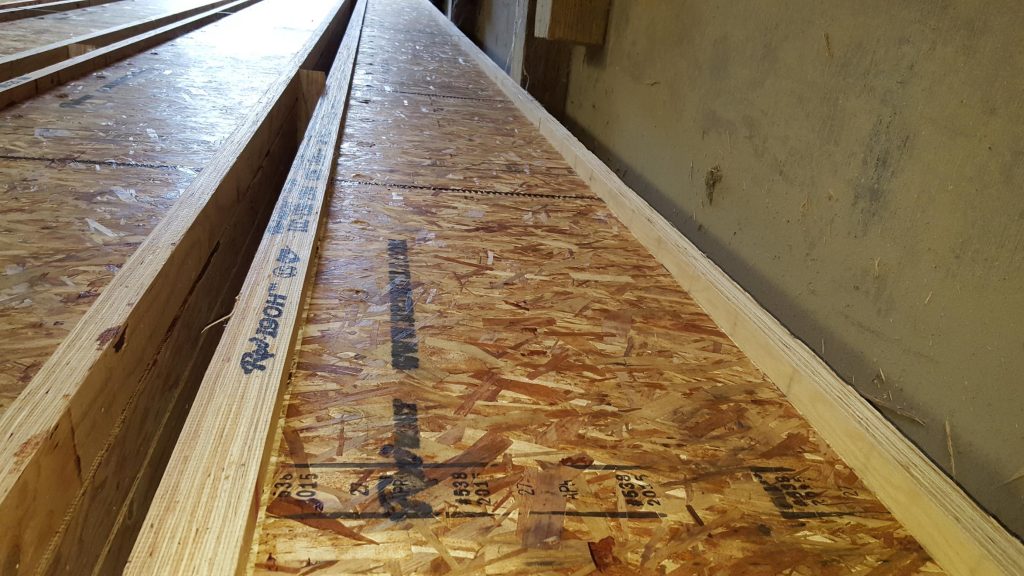

Red-I™ Joists are engineered wood products manufactured in Stayton, Oregon and comprised mainly of two flanges and
oriented strand board (OSB) web. The flanges are made from RedLam™ Laminated Veneer Lumber (RedLam™ LVL) cut to
specific dimensions, while the web material is made from OSB panel. The web-to-flanges connection is a proprietary
tongue-and-groove glued joint, forming the “I” shape cross-section. For the Red-I™ I-Joist series, dimensions of top and
bottom flanges range from 1-3/8” x 1-3/4” (34.9 mm x 44.5 mm) to 2-1/2” x 3-1/2” (63.5 mm x 88.9 mm), OSB web thickness
range from 3/8” (9.5 mm) to 1/2” (12.7 mm), and I-Joists depths range from 9-1/2” (241 mm) to 32” (813 mm). Red-I™ I-Joists
are engineered to replace structural lumber in floor, ceiling, and roof applications.
oriented strand board (OSB) web. The flanges are made from RedLam™ Laminated Veneer Lumber (RedLam™ LVL) cut to
specific dimensions, while the web material is made from OSB panel. The web-to-flanges connection is a proprietary
tongue-and-groove glued joint, forming the “I” shape cross-section. For the Red-I™ I-Joist series, dimensions of top and
bottom flanges range from 1-3/8” x 1-3/4” (34.9 mm x 44.5 mm) to 2-1/2” x 3-1/2” (63.5 mm x 88.9 mm), OSB web thickness
range from 3/8” (9.5 mm) to 1/2” (12.7 mm), and I-Joists depths range from 9-1/2” (241 mm) to 32” (813 mm). Red-I™ I-Joists
are engineered to replace structural lumber in floor, ceiling, and roof applications.
Plant Address
200 East Mallard Drive, Boise, ID 83706
200 East Mallard Drive, Boise, ID 83706
Manufacturer Website
Environmental Indicators
Global Warming Potential
2.903
Kg CO2 eq
